Product Description
Specification
Model | GD-1325A/GD-1325B | |||
XY working area | 1300*2500mm(working area can be customized according to your needs) | |||
Z axis | 200mm-300mm（option） | |||
Max Cutting Speed | 70m/min | |||
Transmission system | XY axis: Germany Herion 1.5MRack and Pinion Z: Germany TBI Ball Screw | |||
Guide rail | Taiwan Hiwin 25mm Linear rail | |||
Working Table | T slot Vacuum table 6 And T clamp combination | |||
Spindle | 9.0kw ATC air cooling spindle | |||
Control system | Taiwan SYNTEC control system | |||
Drive system | Japan YASKAWA servo motor and driver | |||
Air pump | 7.5KW | |||
Dust collector | 4KW,double bags | |||
Inverter | HPMANT 11KW | |||
Spindle Speed | 0-24000rpm/min | |||
Max. Rapid Travel Rate | 45000mm/min | |||
Max. Working Speed | 30000mm/min | |||
Command | G-code | |||
Features:
1. The overall bed with steel seamless welding ,wearing strong, durable ,not easily deformed.Imported square guide rail and high precision ball screw, high precision,wear -resistant,smooth operation
2.Linear automatically tool changer system, tool change only takes more than ten seconds, you can save the tool change time, improve the production efficiency
3.Optional Taiwan LNC system, Intelligent processing cross-border protection functions to prevent the design area beyond, and the intelligent processing speed control function, you can adjust the processing speed, increasing the tool working life
4.T slot lathe structture and 6 separated vacuum adsorption table .assuring the high stability .can adsorb different size plates, more flat sheet

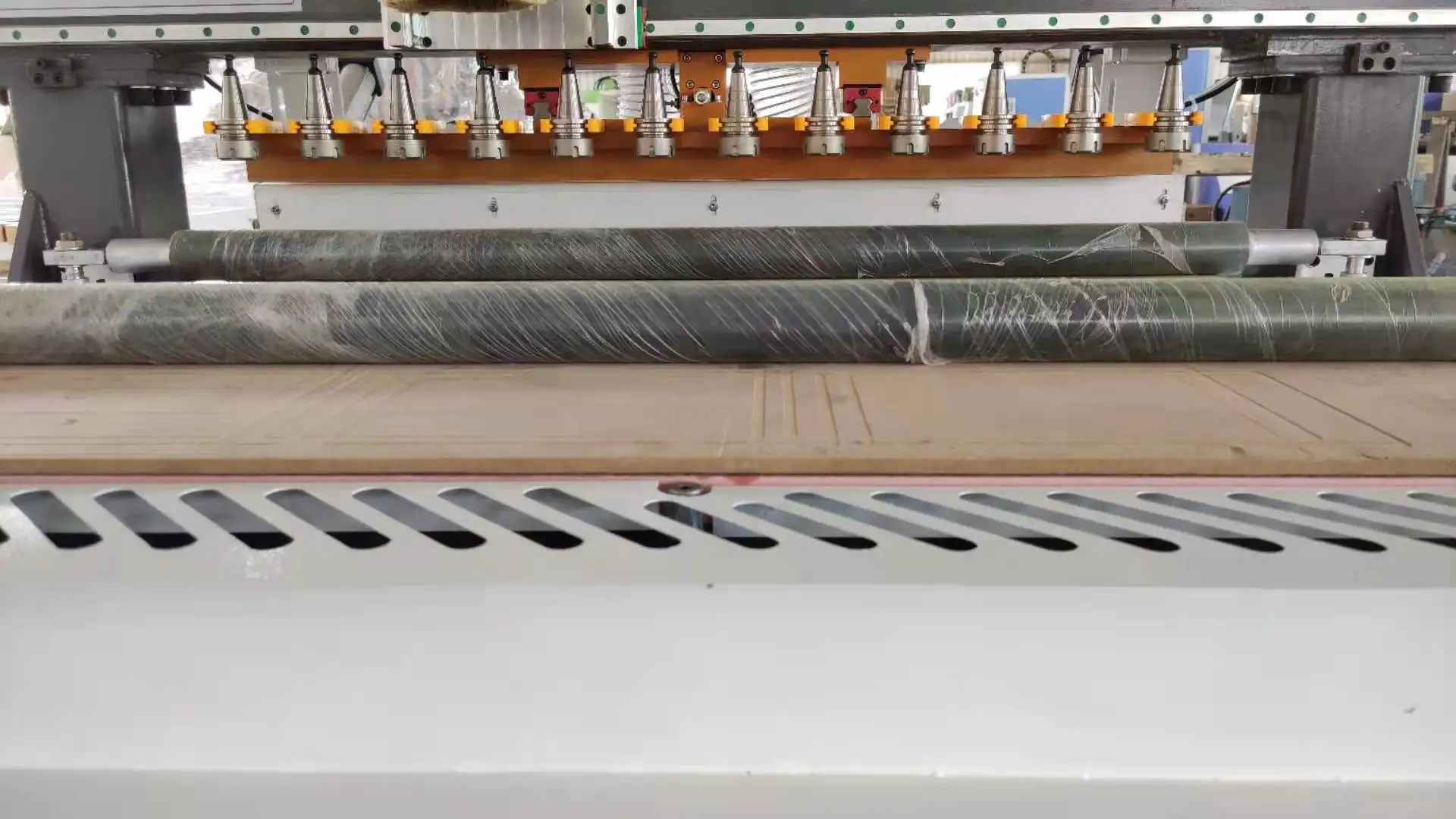

Configured with Linear tool magazine of 10, 12 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.

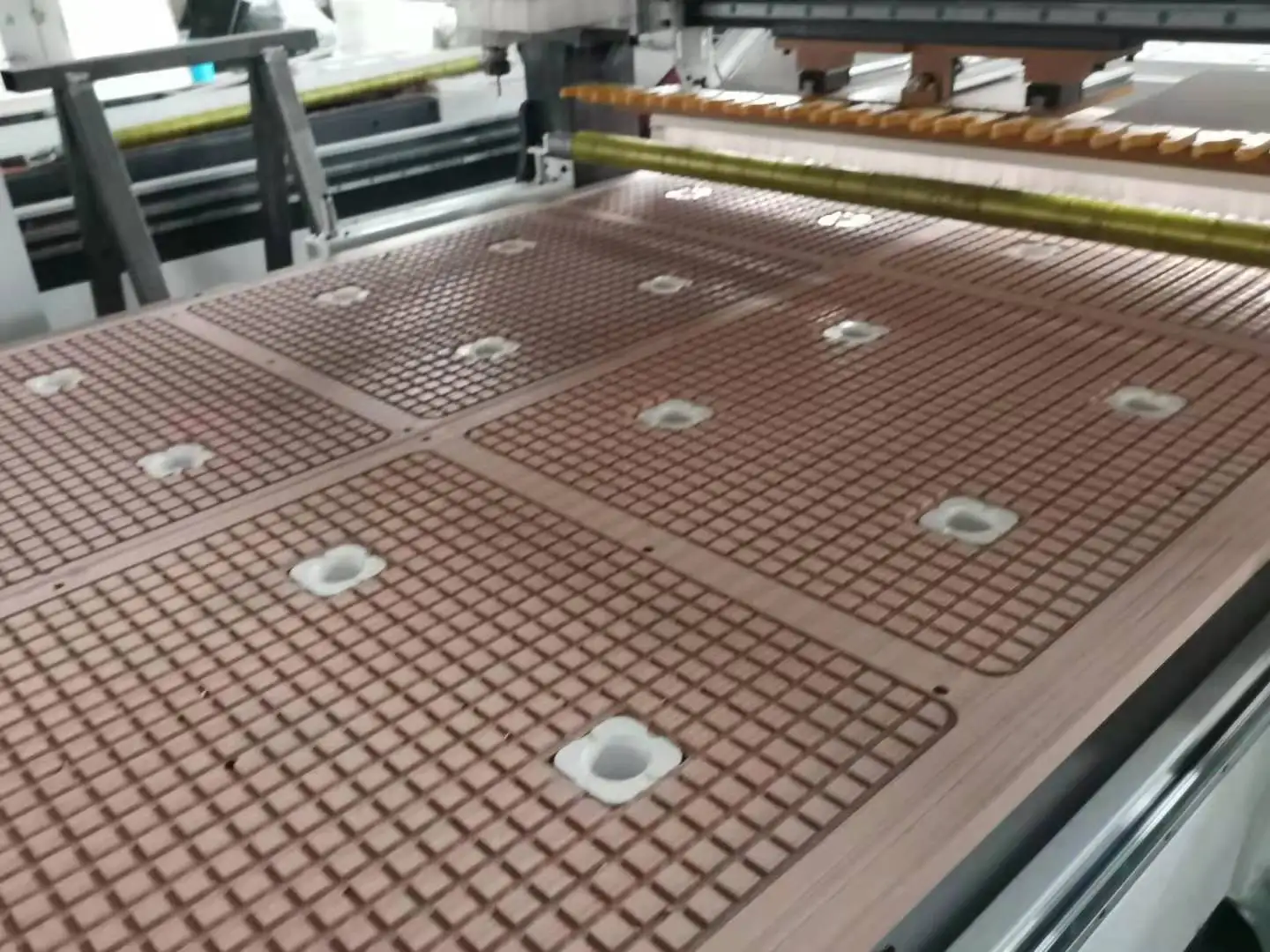

Vacuum worktable in European standard are used in this atc router table cnc for carpentry, positioning cylinder can be added which
make material positioning easily and fast.

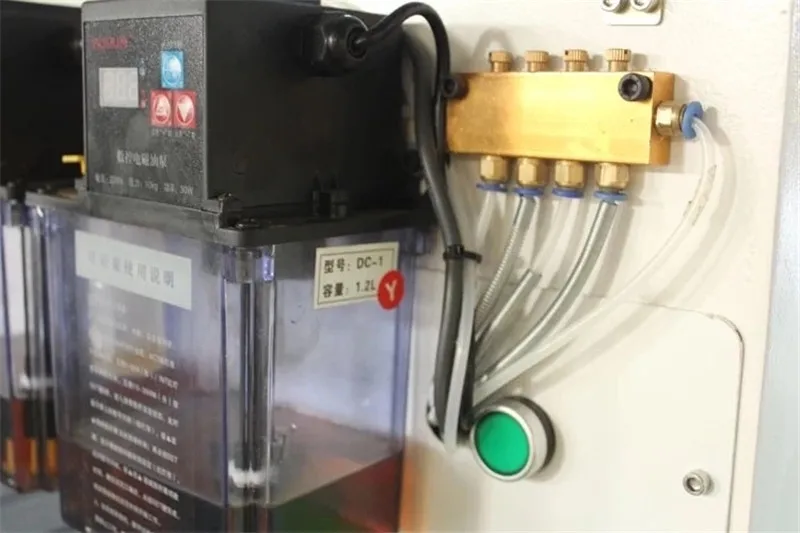

Automatic lubrication system, can automatically lubricate when the machine is working, extending the service life of the machine

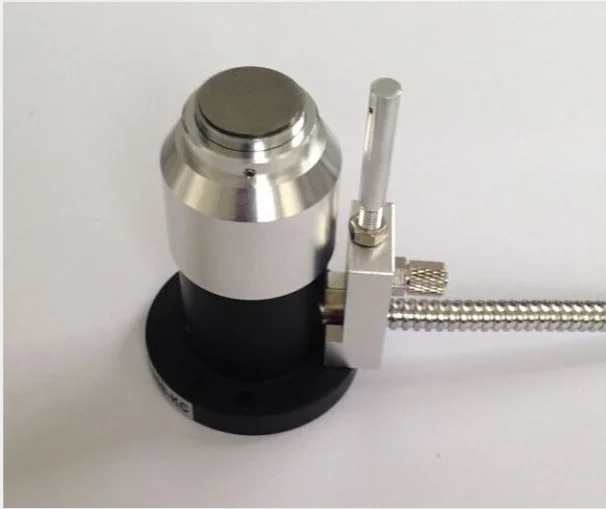

Tool sensor （option）
Tool sensor allows easy and accurate "Z" zero position for single and multiple tool changes through the program.This can measure the distance between the tool head and the material. Tool sensor cnc bit,can prevent the bit cutting through materials and damage the table

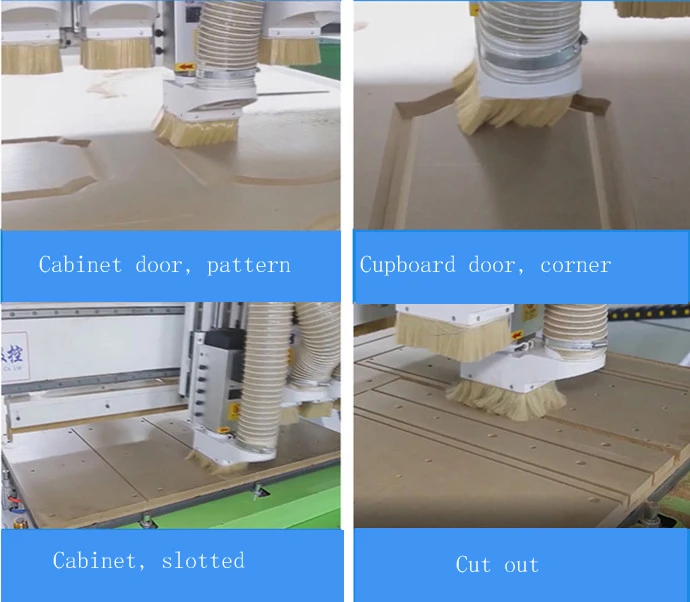

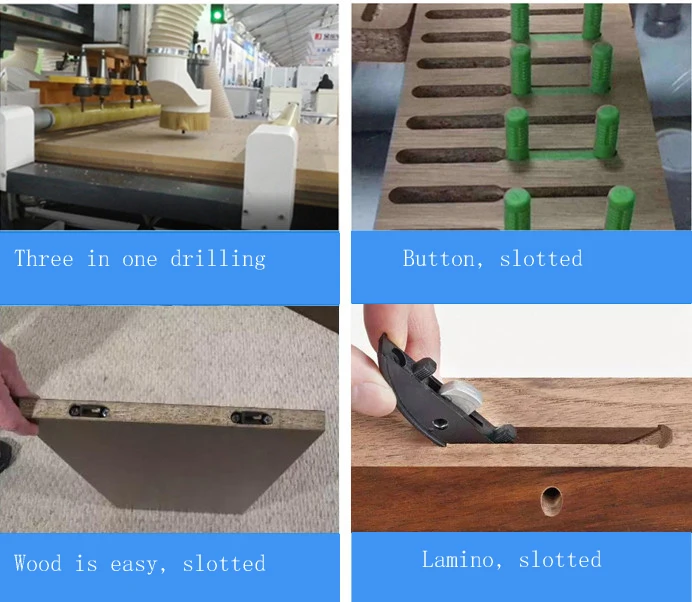

Application
ATC cnc woodworking machine is a specially designed for user who has high standard, high demand, high degree of automation.toward the CNC machine.
Which is suitable for all kinds of solid wood,MDF,composite board, hard plastic, artificial marble, acrylic and other materials batch processing.
Which is suitable for all kinds of solid wood,MDF,composite board, hard plastic, artificial marble, acrylic and other materials batch processing.
Packing & Delivery
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Company Profile
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service.
