Product Descrption
1325 ATC CNC Router with saw are professional multi - function processing center, equipped with automatic steering saw to achieve fast cutting and increase cutting height. Suitable for wood processing factories, furniture factories and other processing types factories.
Features
A. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
B. Three axes adopt Taiwan HIWIN linear guide rail with high precision. Z axis adopts imported Taiwan made ball screw, so high precision and long life time using are assured.
C. Yaskawa servo system and reducer to make sure speed and stability. YASKAWA servo motors runs smoothly, no vibration phenomenon even in low speed and has overload ability,servo is more reliable and better than stepper.
D. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
E. Well compatibility: CAD/CAM designing software, such as type3/ucancam/artcam, etc.
F. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
G: Manual/automatic oil-injection system allows the machine maintenance mush easier.
Technical Parameters
|
Model |
ET-R1325A ATC CNC Router |
||
|
Working Travel |
X axis |
1300mm |
|
|
Y axis |
2500mm |
||
|
Z axis |
200mm |
||
|
Table Structure |
Vacuum suction |
||
|
Orbit |
HIWIN or PMI square orbit 30mm |
||
|
Transmission Type |
X,Y Rack, Z Ball screw |
||
|
Working accuracy |
±0.05 |
||
|
Re-positioning accuracy |
|||
|
Max air move speed |
60000mm/min |
||
|
Max working speed |
25000mm/min |
||
|
Spindle parameters |
Type of cooling |
Imported Italian HSD air cooling spindle |
|
|
Power |
9KW |
||
|
Speed |
0-24000r/min |
||
|
Inverter |
11KW Delta inverter |
||
|
Drive system |
750W Japan Yaskawa servo,Japan shimpo reducer |
||
|
Command code |
G code |
||
|
Control system |
Syntec |
||
|
Oiling system |
Automatic |
||
|
Positioning Cylinders |
Pneumatic pop up system |
||
|
Working voltage |
AC380V/3PH/50HZ |
||
|
Supported File Formats |
DWG, DXE, EPS, AI, PDF, BMP, JPG, TIF, GIF |
||
|
Materials |
MDF, Plywood, Hardwood, Melamine Laminates, Solid Surface Materials, Foam Core, Corrugated Plastic, Aluminium, Di-Bond, Soft Metals |
||
Machine Details

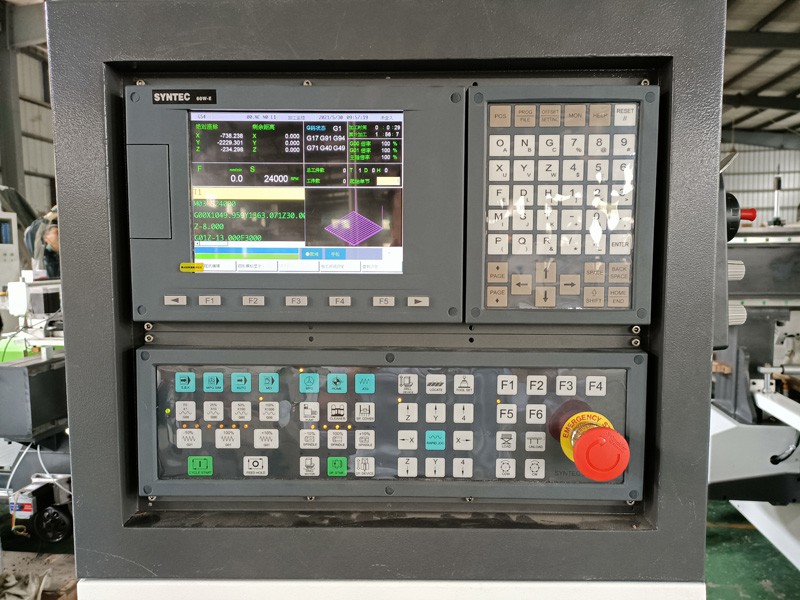

9kw ATC spindle & saw Taiwan Syntec 60W-E system

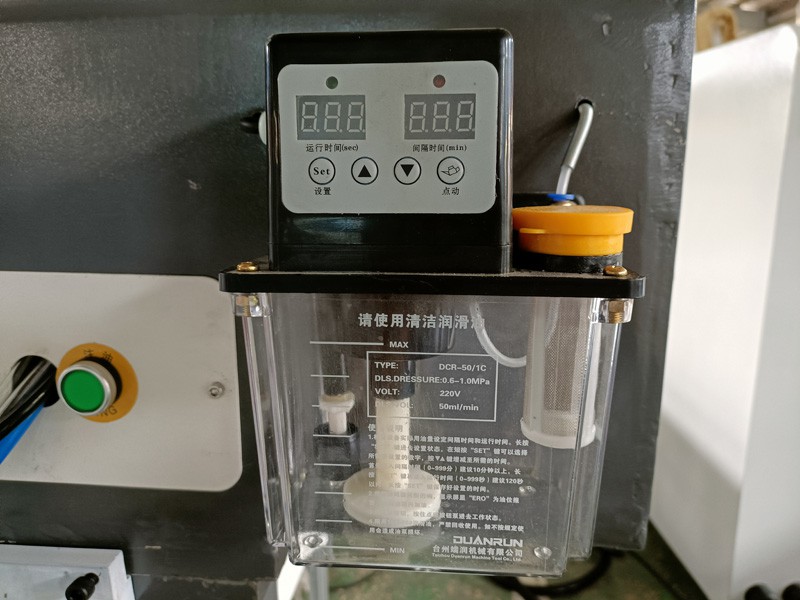

Automatic lubricating system Auxiliary feeding suction device
Application
Applicable Industries
It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panel furniture, office furniture,instrument industry, and so on.
It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
Packing & Shipping
Packing: Strong wooden package
Shipping: 20-30 working days after get deposit
