Product Descrption
1325 Nesting CNC Router is our high grade woodworking CNC Router with automatic tool changers, drilling head and loading & unloading system for wood door, panel cabinet and wood furniture making.
Features
The purpose of the auto loader is to get more productivity out of the CNC without requiring more people. one person can still operate the machine, because all the materials handled automatically and it really makes it a much simpler job for the operator.
3 steps know how it works
Step 1:as the sheet is loaded ,the stack automatically raises to the next sheet
Step 2:the machine Traverse at the end of middle table ,then 3 suction cups are over the end of the panel, they pick it up with vacuum.at meanwhile ,pusher come out from fence and push the sheet to unloading table,it starts feeding all these parts down here, until they break a light beam on this end. poisition device align the sheet.so that lines it perfectly on the table
Step 3:operator could put labels on and operator also take the parts off of the machine and it's real simple ,operator puts it on a stack or a rack or wherever.
Technical Parameters
|
Model |
1325 Nest CNC Router |
|
X-Y-Z axis working area |
1220*2440*200mm |
|
Machine size |
3500*2200*2200mm |
|
Repositioning resolution |
0.02mm |
|
X-Y movement |
Rack and pinion, gear drive/Taiwan |
|
Z movement |
Ball screw drive/Germany |
|
Guide |
Linear 30mm square/Taiwan |
|
Spindle power |
9.6KW Italy spindle(ISO30, fan cooling ATC) |
|
Spindle speed |
24000rpm |
|
Inverter power |
11KW |
|
Tool magazine |
10 pcs tools, carousel type |
|
Drive motors |
Japan Yaskawa Servo Motor |
|
Working voltage |
AC380V/50-60Hz, 3-phase |
|
Command code |
G code |
|
Computer interface |
USB 2.0 |
|
Reduce |
Shimpo |
|
Software |
Artcam , Alphacam copy |
|
Controls |
Syntec 21A |
|
Standard equipment included
|
1.Auto tool length compensation device |
|
2.Auto oil lubrication system |
|
|
3.Dust hood |
|
|
4.Double layer vacuum table with the 5.5 kW Germany Becker pump |
|
|
5.Tool shanks |
|
|
6.Positioning pins |
|
|
Optional |
Dust collector |
Machine Details
9kw ATC soindle & HSD 5*4 drilling head Taiwan Syntec 60W-E system
Loading system Unloading sytem

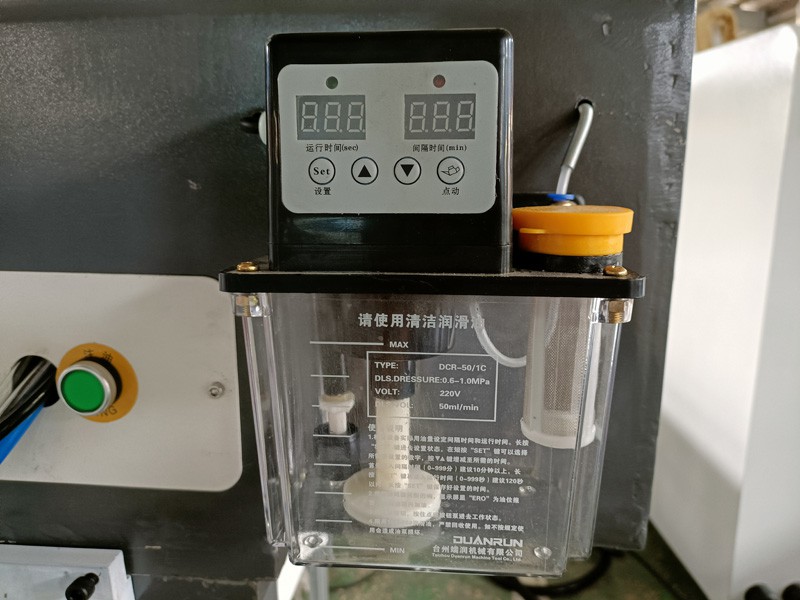

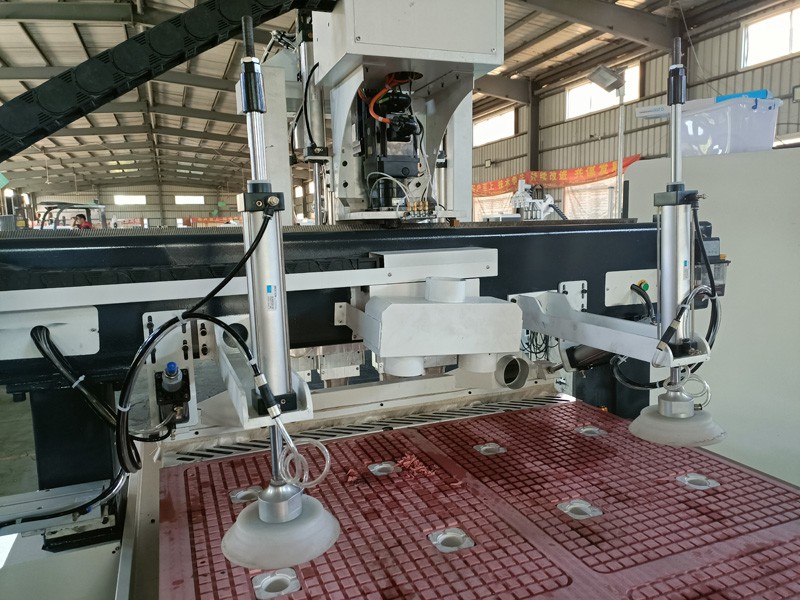

Automatic lubricating system Auxiliary feeding suction device
Application
ATC loading unloading CNC router automatically loading and unloading, greatly saving labor and time.Suitable processing doors and windows wardrobe furniture.The samples are exquisite and popular with customers.
Packing & Shipping
Packing: Strong wooden package
Shipping: 20-30 working days after get deposit
