Product Description


Model | GD-1325A/GD-1325B | |||
XY working area | 1300*2500mm(working area can be customized according to your needs) | |||
Z axis | 200mm-300mm(option) | |||
Max Cutting Speed | 70m/min | |||
Transmission system | XY axis: Germany Herion 1.5MRack and Pinion Z: Germany TBI Ball Screw | |||
Guide rail | Taiwan Hiwin 25mm Linear rail | |||
Working Table | T slot Vacuum table 6 And T clamp combination | |||
Spindle | 9.0kw ATC air cooling spindle | |||
Control system | Taiwan jinke control system | |||
Drive system | Japan YASKAWA servo motor and driver | |||
Air pump | 7.5KW | |||
Dust collector | 4KW,double bags | |||
Inverter | HPMANT 11KW | |||
Spindle Speed | 0-24000rpm/min | |||
Max. Rapid Travel Rate | 45000mm/min | |||
Max. Working Speed | 30000mm/min | |||
Command | G-code |

Taiwan Jinke system supports five languages: English, simplified Chinese, traditional Chinese, Vietnamese and Japanese

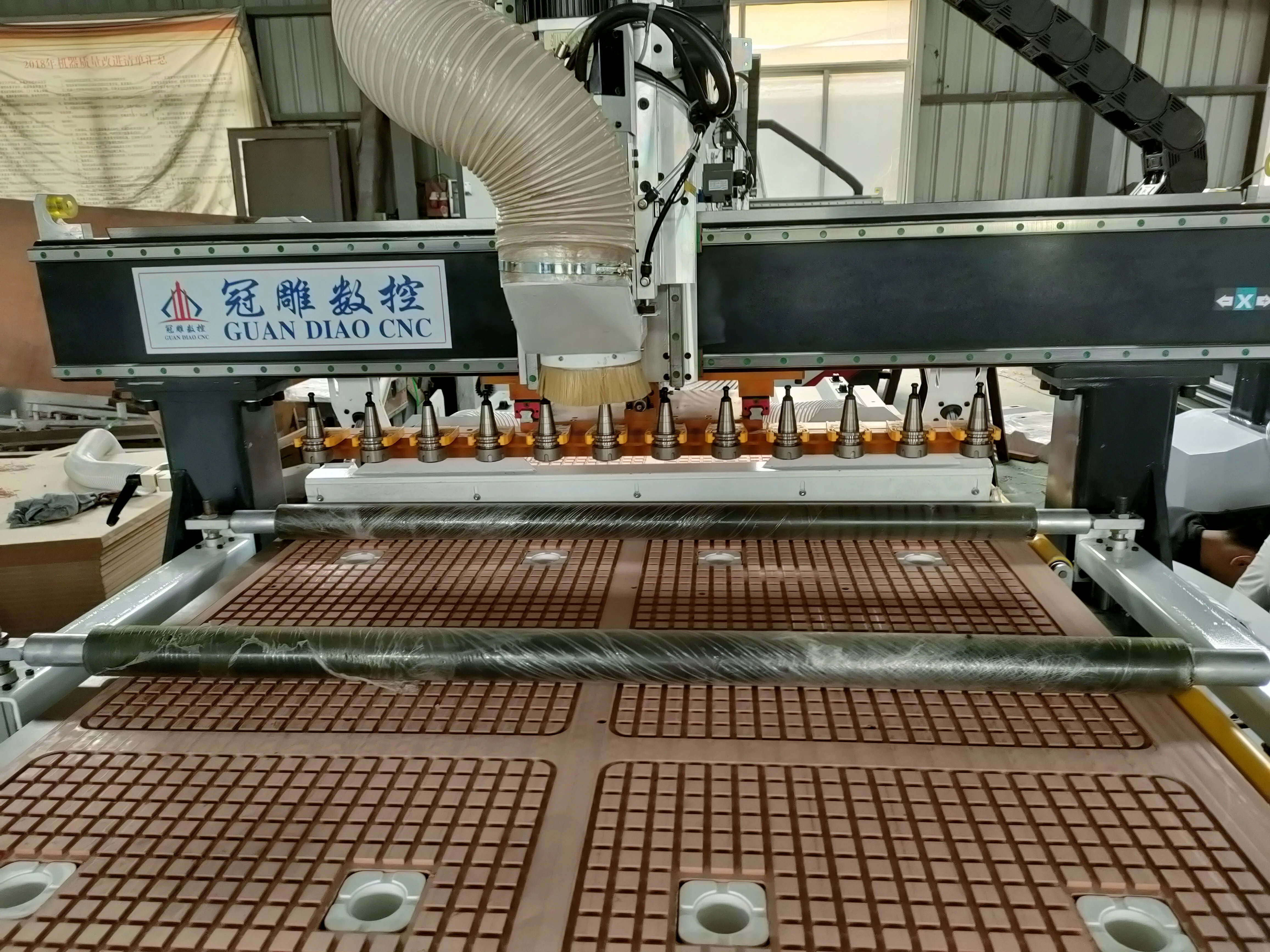

This atc cnc router machine adopt automatic tool changer 9KW HQD spindle makes machine with high precision, long service time and stable movement.


Configured with Linear tool magazine of 10, 12 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.













Q1:How long is the delivery time of this cnc milling machine?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific requirements,
it would be 15 to 30 days.
Q2: What mode of payment for this cnc milling machine?
T/T, 30% deposit and the balance 70% should be paid before shipment.
Q3: If some problems happened to this cnc milling machine during warranty
period, what should i do?
We will supply free parts in machine warranty period if machine have some problem. While we
also supply free after-service forever,so any doubts,just let us know,we will give you solutions in 30 minutes.
