Description

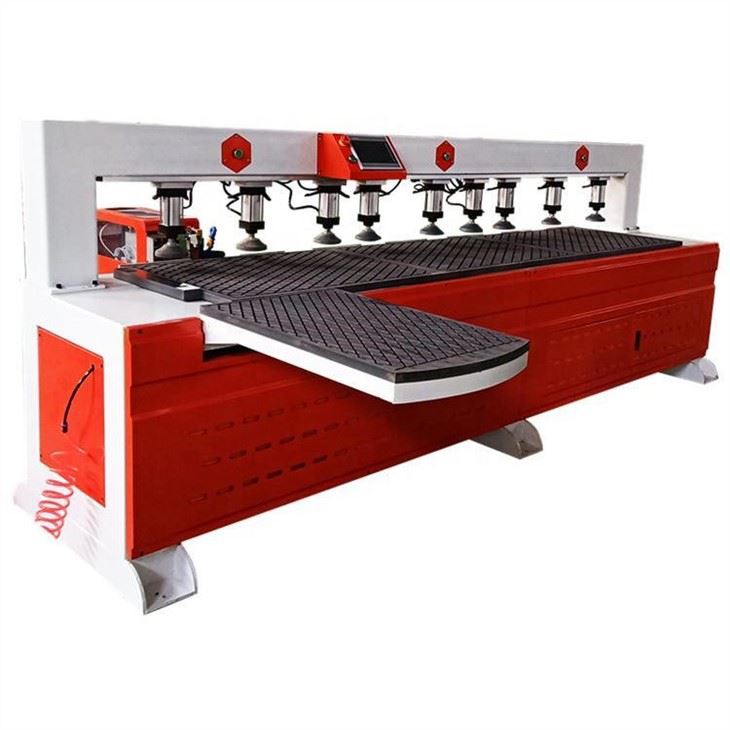

This Side Hole Drilling Machine adopts all-copper motor with high power density, which has strong power, high efficiency and energy saving. With efficient heat dissipation system, it can be used continuously for a long time without obvious burning or burning of the machine. We are equipped with multiple protection systems. The machine body is stable, the gears are thicker, the table top is smoother, the maintenance work is simple, and the concise operation table top is easy to use. The working efficiency of one machine can surpass that of many traditional machines.
Features
1. Our Side Hole Drilling Machine comes with an imported laser probe, which is a special imported customized version that can easily identify various color boards, black boards and mirror boards.
2. We have completely solved the problem of inaccurate hole position and leakage when drilling at high speed by traditional machines for manufacturers who use motion controller.
3. This product supports the trinity processing mode of long material, short material and long slot, which is easy to operate.
Specifications
Description | Parameters |
Dimension (L*W*H) | 3350*1770*1400mm |
Working speed | 10500mm/min |
Spindle travel speed | 24000RPM/MIN |
Table Surface | Vacuum Table |
Laser Head | Banner |
Frame | Heavy welded steel tube |
Structure | Ball screw, square rail |
Control System | Motion control system |
Servo System | Double servo system |
Traveling Positioning Accuracy | ±0.02mm/300mm |
Spindle Power | 2.2KW |
Working Voltage | 380V, 50/60HZ, 3ph |
N.W. | 1200KG |
Main Function | Drilling hole/Wooden pin hole/slotting |
Optional | 3.5KW spindle/Dust Exhaust Apparatus |
Product Detail
| Touch screen, simple operation, at a glance |
| Pressure cylinder |
| PVC table |
| Drills of machine |
Application
Side hold drill machine is mainly applicable to wood furniture industry, for example: Cabinets, Tables, Chairs, fine pattern, antique furniture, wooden door, screen, composite gates, cupboard doors, interior doors, headboards and so on.
FAQ
Q. What are your normal lead times?
A. Our company typical lead times range from 15 days after receipt of order.
Q. What are the terms of payments you offer?
A. We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q. What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q. Do you have CE certification
A. Yes, we have CE certification, machine quality is one year guaranteed.
Q. How to control the quality of the products?
A. We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
Our Services
1. Warranty: 3 years on parts from date of shipping date, Life-time technical support.
2. Machine spare parts and repair service is offered in lifetime.
3. Demand research, technical Seminar, application testing and samplings service.
