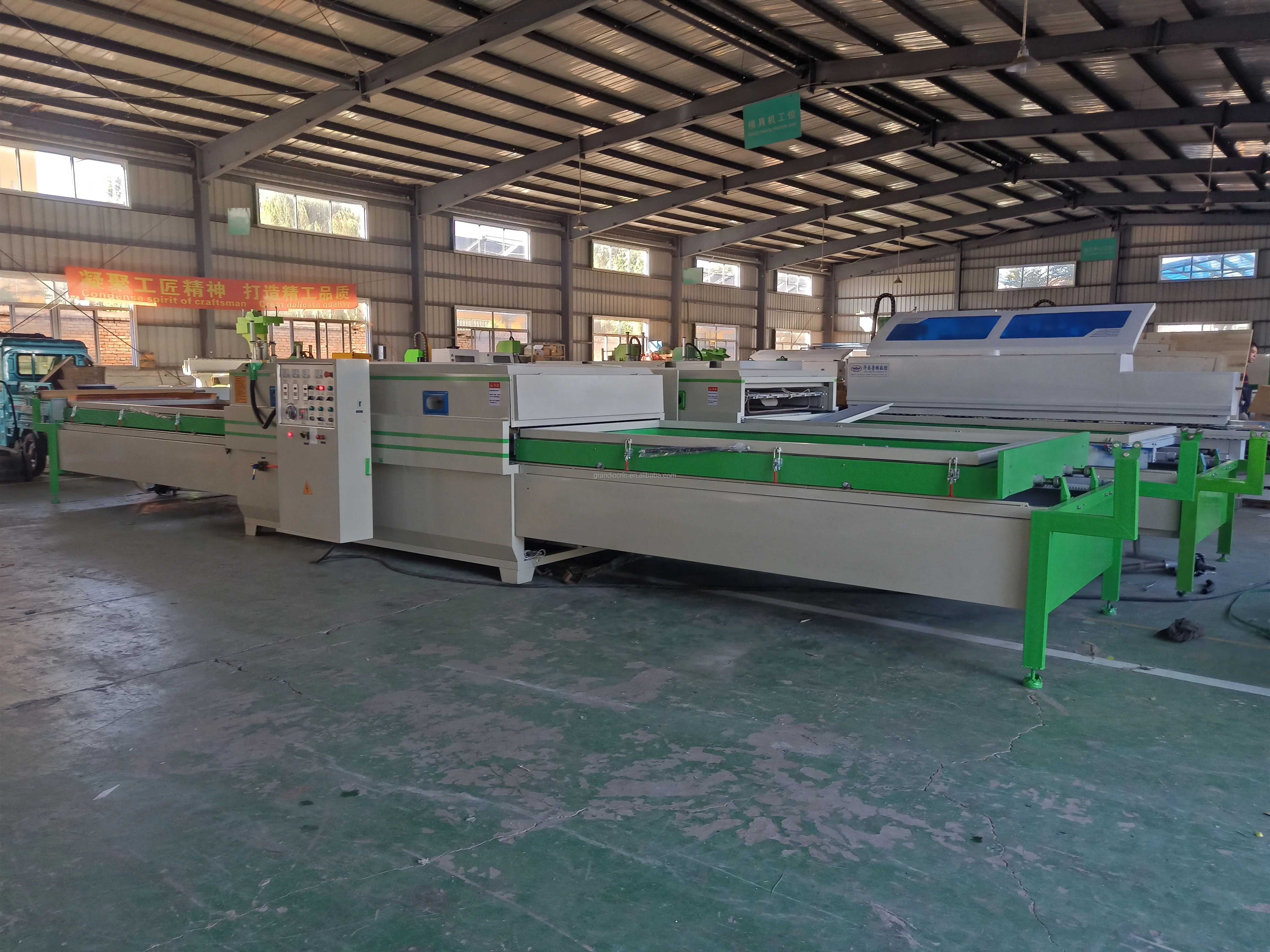

Full automatic vacuum laminating machine
Main Features:
1. Positive and Negative Pressure Automatic Door Laminating Machine suitable to laminate PVC, veneer, hot stamping foils etc materials to panel type furniture (such as interior doors , wall decoratative plate etc. )
2. The main frame adopts complete steel structure without welding, strong resistance to pressure.
3. The operation program controlled by Electrical digital display, production runs automatically.
4. Use hydraulic system and compressed air as main power, and then combined with negative pressure perfectly, it can process more complex shape product, greatly improve the product surface textures quality.
5. Two working tables run with up and down compound operating mode, save occupation area.
Mode | TM2480C-2 (Semi-auto) | TM2480B-2(Full-auto) | ||
Machine size | 6000*1500*1400mm | 9000*1600*1400mm | ||
Working size | 2550*1100 | 2550*1300mm | ||
Maximum plate size | 50mm | 50mm | ||
Air pressure | -0.1Mpa | -0.1Mpa | ||
Max Working Height | 50mm(optional) | 50mm(optional) | ||
Total power | 20kw | 25kw | ||
Actual consume | 5kw | 5kw | ||
GW | 1200kg | 1500kg |

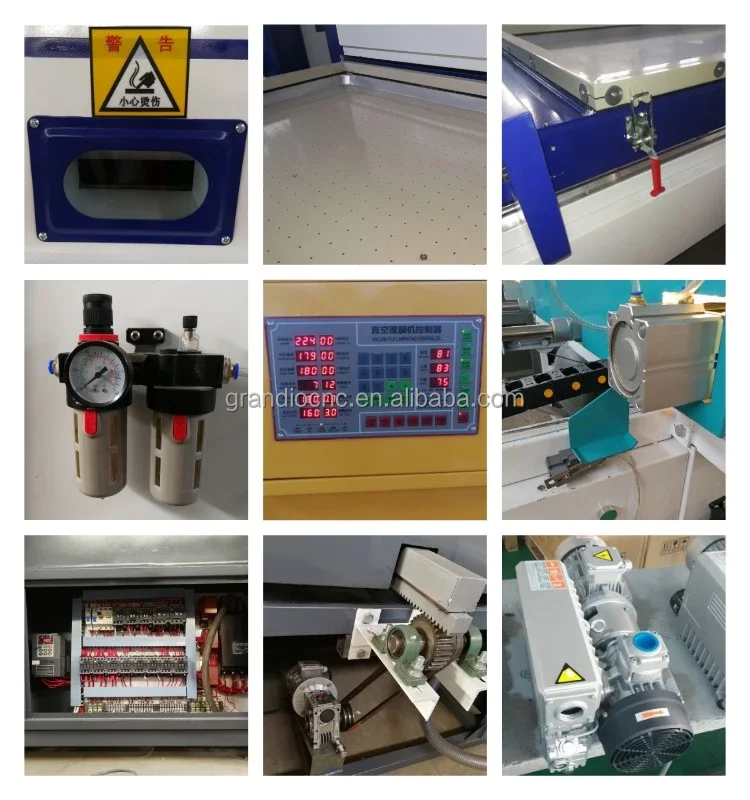

Control panel
Automatic lock catch


Vacuum pump


Product usage introduction






You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
