Production Introduction
with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.
1. High-performance laser device associated with stable operation system enables optimal cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single countertop make plates loading and unloading available during cutting, which improves the processing eficiency.
4. Large-size closed enclosure improves dedusting effects and avoids optical pollution.
5. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
6. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.

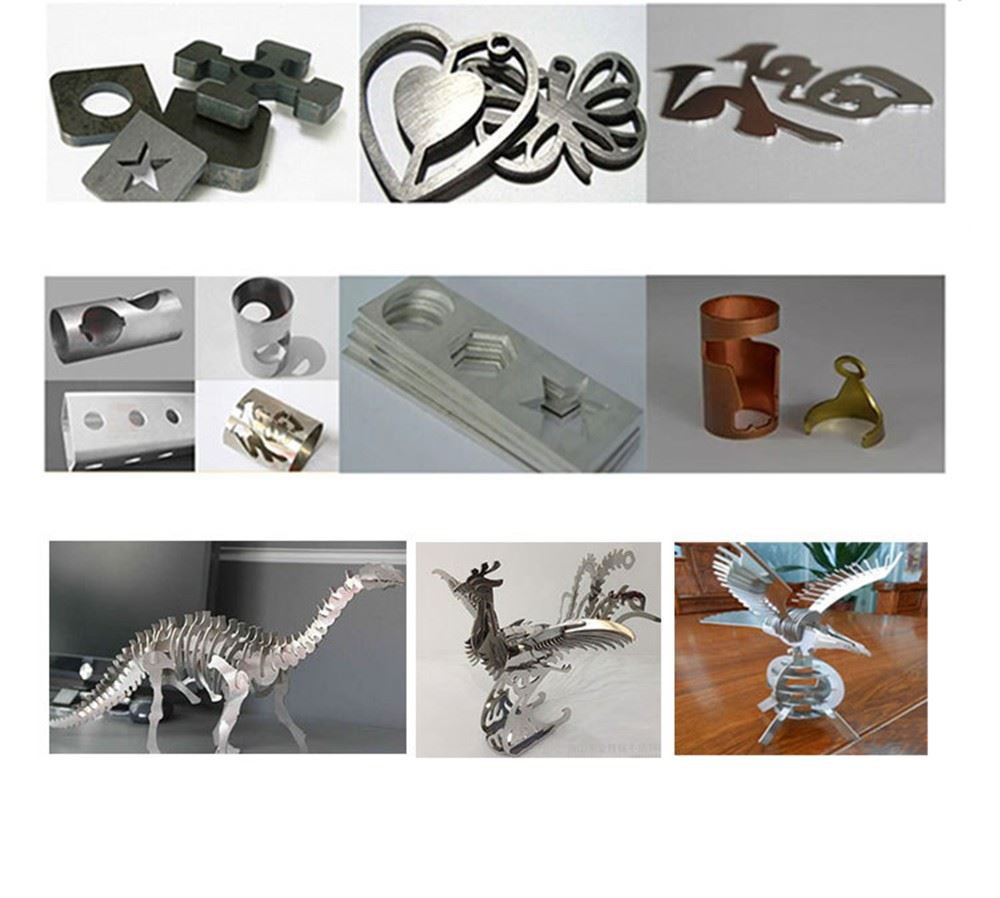

7. It could ut mental in various materials and realize excellent and stable cutting effects.
Fiber laser cutting engraving machine
| mode | GD3015 | GD2040 | optional |
| working range | 1500x3000mm | 2000x4000mm | as commend |
| laser power | 500-4000w | 500-4000w | as commend |
| precision | 0.15mm/1000m | 0.15mm/1000m | 0.15mm/1000m |
| Working Area | 3000*1500mm |
X axis working area | 3,000mm |
| Y axis working area | 1,500mm |
| Laser Power | 1000W/1500W for option |
| Positioning accuracy | ±0.15mm |
| Repeatability positioning accuracy | ±0.02mm |
| XY Axis Maximum Acceleration | 1g |
Production details
<about company>
Q1: I know nothing about this machine, what type of machine should I choose?
A: We will help you choose the suitable machine and share you the solution; you can share us your material,thickness,cutting area,we will recommend suitable machine for you.
So，Please tell us what you need!!
1.What is your working size?
2.What material do you need to cut?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ? requirement .
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A: We will send operation video and manual for the machine. Our engineer will do training online. If needed, you can send the operator to our factory for training.
Q3:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q4: If some problems happen to this machine, what should I do?
A: We provide one years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q5: What’s package, will it protect the products?
A: 1.Anti-collision package edge, all parts of the machine are covered with some soft materials, mainly the use of pearl wool.
2. Free-Fumigation wooden box for key components, such as laser source, water chiller
3. Whole film packaging machine to avoid all damage that may occur during delivery.
Q6: What’s delivery time?
A: Commonly, the lead time is within 25 working days after receiving the payment.
Q7: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
