Fiber Pipe Laser Cutting Machine
|
|
Suggestion: The machine is tailored for sheet metal processing enterprises. please kindly tell us the material thickness &Material size you need cut, then we will recommend the suitable fiber laser cutting machine for metal.
Main feature
1.High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular are cutting speed.
2.Open worktable, easy operation and small space occupation.
3.High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
4.Fast cutting spped ：9,000mm/min
5. High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
6. The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
7. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
8.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
9. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
Machine Parameter
Machine Model | GD3015 |
Laser Type | Raycus Fiber Laser |
Laser Power | 500W/1000W/2000W/3000W/4000W/6000W |
Weight | 3000kg |
Dimensions | 3600mm×2300mm×1860mm |
Working Area | 3000×1500mm |
Repeat Positioning Accuracy | ±0.02mm |
Maximum Speed | 80m/min |
Maximum Acceleration | 1G |
Transmission | Double driver rack gear |
Power Consumption | <10KW |
Power Supply | 380V/50Hz-60Hz |
Machine Details
|
|
|
|
|
|
Application
Fiber Laser Cutting Machine is widely used in kitchen appliance,electrical control box ,mechanical equipment,electrical equipment,lighting hardware fittings,elevator manufacturing,auto parts ,hardware and metal processing.
|
|
|
Packaging and Transportation
|
|

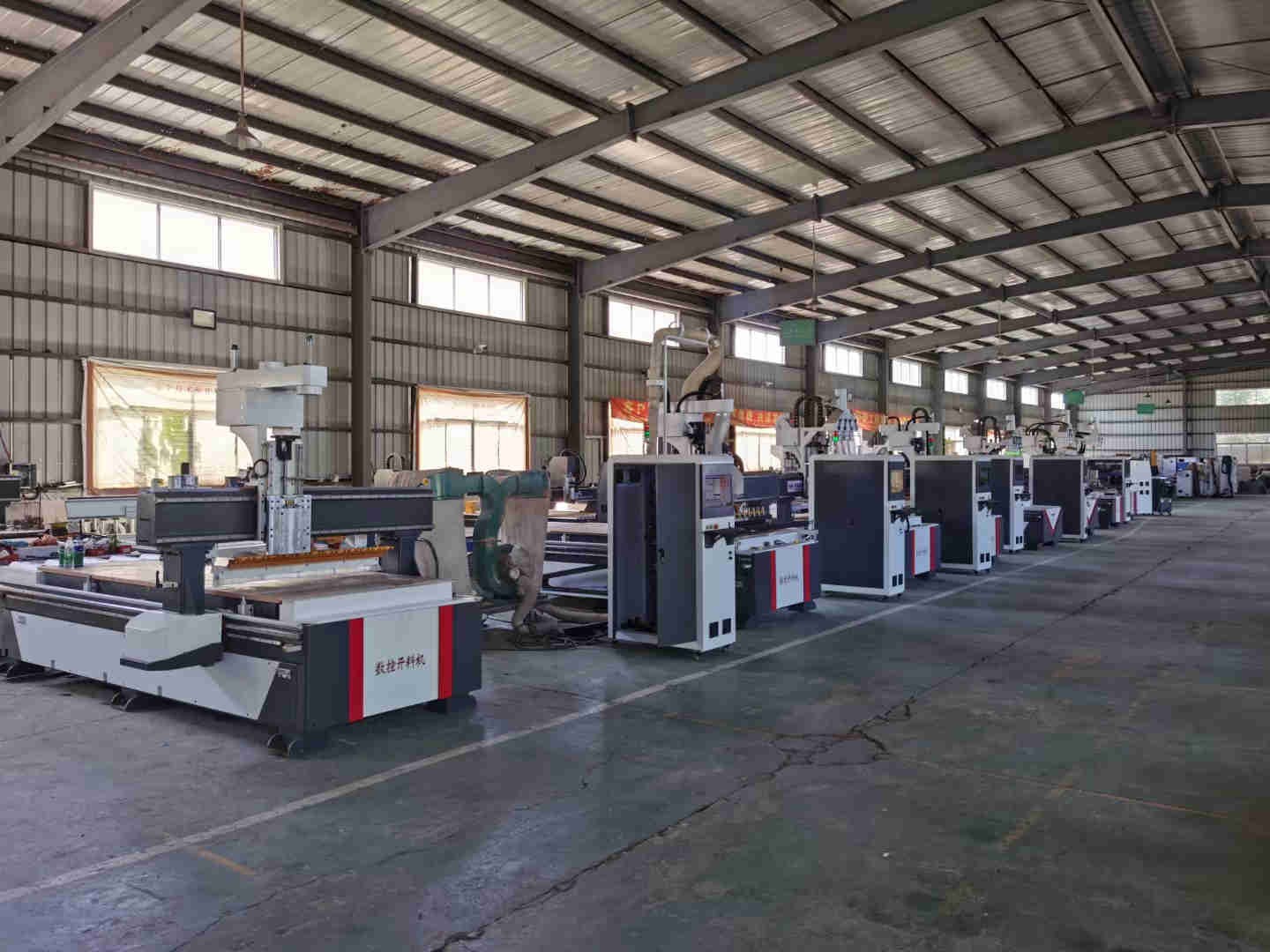

Company introduction
| Shandong Guandiao CNC Equipment Co., Ltd was established in 2008, specializing in CNC machinery with rich experience! Guandiao CNC is comprehensive in the production, designing, manufacturing, trading and supplying service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand Guandiao CNC " gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion. | |
|
|
|
|
FAQ
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How do I operate this machine?Is training necessary?
A:The machine is mainly controlled by software.Simple, not complicated.Before delivery, we will make a simple operation manual and pictures, and provide the software manual.Generally speaking, an operator who is not familiar with the fiber laser marking machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or when the customer needs to come to our factory for machine training.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q:What material can fiber laser machine cut?
A:Stainless steel, carbon steel, mild steel, galvanized steel, aluminum, copper, brass and other metal sheet and pipe.
