Machine Parameters
Model | Working Area | Power Source | Main Configurations |
GD1530 | 1500*3000mm | 500W/1KW/ 2KW/3KW/6KW | n + AU3TECH Laser Cutting Head(Auto Focus) n + Taiwan DELTA 1000W Servo Motor and Driver n + Rack Gear with Double Driver n + TAIWAN SHAC Guide Rail n + Hanli Water Chiller n + AU3TECH Control System. n + Raycus Fiber Laser Source n + France Schneider Electrical Part n + Industrial Computer n + 3rd Generation Aviation Aluminum Gantry n + Segmented Rectangular Tube Welded Machine Bed n + Heavy Machine Bed n + Independent Distribution Box n +Exchange working table |
Warranty | 1 Years | ||
Payment Term | T/T 100%, or 30% as deposit 70% before delivery | ||
Delivery Time | 25-30 Working Days | ||
Machine Pictures
Details

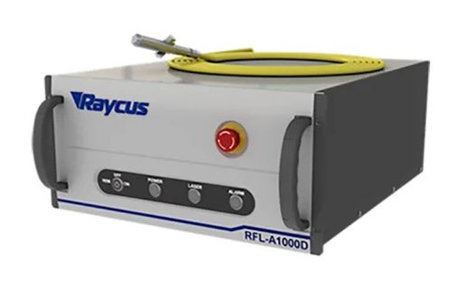

Fiber Laser Source:
| Servo Motors and Driver:
| AU3TECH Cutting Head:
|
German Newgear Reducer:

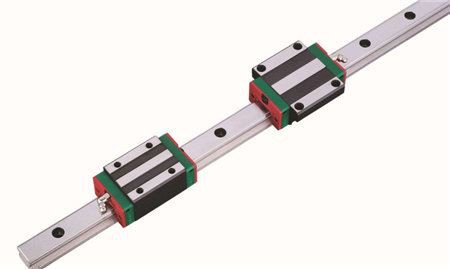

| Taiwan SHAC Guide Rail:
| Rack and Gear:
|
Heavy Machine Bed Structure:
| Aluminum Gantry:
| France Schneider Electrical Part:
|
Hanli Water Chiller:
| Control Panel:
| Independent Control Box:
|
Applications
Metal fiber Cutting Machine meets the parts processing requirements of most industries, working accuracy is stable. At present, metal fiber laser cutting machines have been widely used in electronics, electrical, mechanic al hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
Features
1. Rigid machine body obtained through standard annealing process in high - temperature electric furnace, ensuring precision in the long term.
2. Imported original fiber laser generator with super beam quality and stable performances, laser passes through fiber without reflectors, free of light path adjustment, maintenance free, service life up to 100,000 hours.
3. Photoelectric Conversion Efficiency (PCE) by 30%, far more higher than CO2 laser or YAG, which saves much of energy cost.
4. Imported precision motion parts and servo motors, which support high-speed running.
5. Capable of cutting various graphics and words, which makes work simple , flexible, and convenient.
6. Smooth cut without deformation.
7. Extremely low energy cost, which accounts only 1/3-1/5 of YAG machine if output powers were the same, environment-friendly.
8. Solid-state laser type, which supports multi mode integration with multi mode power outputs, able to cut a variety of sheets with fair speed. In addition, it supports air cutting thin sheets, greatly shortening period of ROI (return of investment).
Samples
 |  |  |
 |  |  |
Quality Management Test
 |  |  |
 |  |  |
Factory Show
