What Is Cnc

Applicable materials:

Basically suitable for all materials, such as plastic, metal, wood, glass, ceramics and synthetic materials.

Design considerations:

1. The number of CNC axes determines the shape of the finished product. For example, a lathe can only perform 2-axis cutting (2 axes: x, y directions), while a milling machine can perform 5-axis molding (5 axes: x, y, and z directions plus 2 rotation axes).

2. CNC can directly import CAD data into the workbench, with strong material adaptability and low cost, so it is often used by designers to make prototypes, which is an indispensable part of the transition from design to production.

3. For simple or complex product shapes, CNC technology treats them as multiple connectable sequence points for processing. If you want to learn UG programming, you can add QQ group 304214709 to receive UG learning materials and courses, which provides unlimited design possibilities. sex.

4. The cost of CNC process is generally converted according to the unit time of finished product production.

Type 1: 3-axis CNC, the tool head can move on the horizontal x, y axis and vertical z axis. The forming process can be completed by multiple tool heads, such as slot drills, taper drills, flute drills and ball milling cutters. Wait.

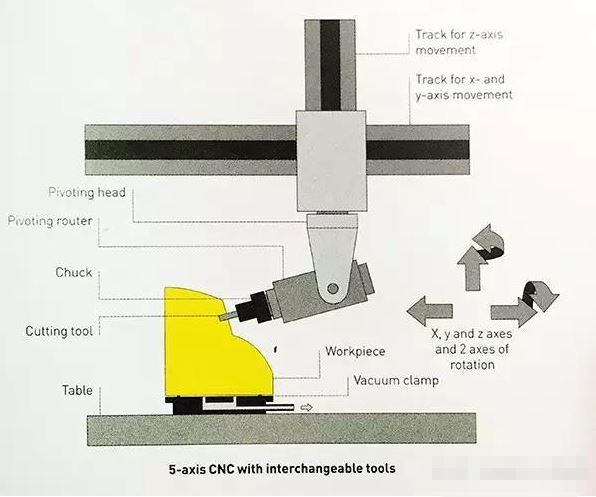

Type 2: 5-axis CNC, the cutter head can move on the horizontal x, y, z axis and 2 rotation axes. The molding process is completed by a single cutter head and multi-directional flexible cutting.

Example 1: Making a 3-axis CNC face (picture)

Example 3: Other CNC processed products (multiple pictures)
