Introduction
CNC Panel Saw is a tool used to cut material placed on its panels, and the saw can be moved vertically or horizontally. It is used to process and cut a solid piece of material, most commonly wood, into a specific size. The vertical panel saw leans against the wall, while the horizontal panel saw has a table to put the material. Cabinet manufacturers and sign manufacturers often use these saws to cut wood, plywood, plastic, and aluminum. This product has three types: 2.8m45° MJ45YD, 2.8m9° MJ45YD and 3m45° MJ45YD. They are different in size, angle, max sawing length and so on. So you can the right one that suitable to your panels.
CNC Panel Saw has adjustment button, 45 degree saw, round guide rail and ruler. These great parts make our panel saw simple in operation, quick in speed, stable in structure and precise in fixed position. It has the following features and advantages:
(1) It is suitable for processing various particleboards.
(2) Double-layer sliding table.
(3) Precision round guide rail on the surface.
Service
Guarantee
The whole machine is guaranteed for two years. Within 18 months, if the machine fails, you will receive the corresponding parts free of charge. Within 18 months, you will get spare parts at cost price. You will also get lifetime technical support and service.
Technical support
1. Provide technical support by phone, email, WhatsApp, WeChat or Skype.
2. Friendly English manual and operation video CD.
After-sale service
Normal machines have been properly adjusted before shipment. You can use the machine as soon as you receive it. In addition, you will receive free training advice on our machines. You will also receive free advice and consultation, technical support.
Specifications
Product model | 2.8m45° MJ45YD | 2.8m9° MJ45YD | 3m45° MJ45YD |
Dimensions of sliding table saw | 2800*320mm | 2800*320mm | 3000*375mm |
Maximum sawing length | 2750mm | 2750mm | 2950mm |
Maximum sawing width | 1250mm | 1250mm | 1250mm |
Blade Diameter | 300mm | 300mm | 300mm |
Maximum blade thickness | 80mm | 80mm | 80mm |
Spindle speed | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Angle of saw blade | 0-45° | 90° | 45° |
Main motor power | 4.0/5.5kw | 4.0/5.5kw | 4.0/5.5kw |
Diameter of scoring saw | 120mm | 120mm | 120mm |
Speed of scoring saw | 8000rpm | 8000rpm | 8000rpm |
Diameter of countershaft | 20mm | 20mm | 20mm |
Auxiliary motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
Net weight (kg) | 700 | 700 | 770 |
Size (mm) | 2850*3050*900 | 2850*3050*900 | 3050*3100*900 |
Product model | 3m90° MJ45YD | 3.2m45° MJ45YD | 3.2m90° MJ45YD |
Dimensions of sliding table saw | 3000*375mm | 3000*375mm | 3000*375mm |
Maximum sawing length | 2750mm | 3150mm | 3150mm |
Maximum sawing width | 1250mm | 1250mm | 1250mm |
Blade Diameter | 300mm | 300mm | 300mm |
Maximum blade thickness | 80mm | 80mm | 80mm |
Spindle speed | 4500/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Angle of saw blade | 90° | 45° | 90° |
Main motor power | 4.0/5.5kw | 4.0/5.5kw | 4.0/5.5kw |
Diameter of scoring saw | 120mm | 120mm | 120mm |
Speed of scoring saw | 8000rpm | 8000rpm | 8000rpm |
Diameter of countershaft | 20mm | 20mm | 20mm |
Auxiliary motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
Net weight (kg) | 720 | 790 | 770 |
Size (mm) | 3050*3100*900 | 3250*3150*900 | 3250*3150*900 |
Product Details
| Adjustment button One button one switch, easy to operate, convenient and fast. With the adjustment of the hand wheel on the scale display, improve the accuracy of the machine. Effectively reduce the preparatory work of the machine, save a lot of time. |
| 45 degree saw This machine can adjust 45degree sawtooth, suitable for more range of wood use. It can not only cut right angles, but also adjust the angle by itself. Double saw blade structure, small saw blade is responsible for marking, and big saw blade is responsible for plate opening. |
| Round guide rail European style double-layer round bar pushing table is adopted, with stable structure, high positioning accuracy, long service life, high bearing pressure, small friction, smooth driving, more stable cutting, more durable rust prevention. |

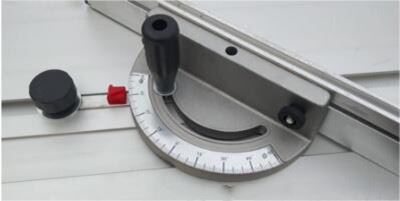

| Ruler The operation is simple and clear to ensure the machining accuracy. Ensure the stability and smooth driving. |
Product Application
Company Factory Introduction
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after-sales service. has mainly sold various mining construction equipment to 28 provinces and cities nationwide, exported to more than 20 countries and regions, and imported equipment and equipment from Germany, Britain, France and other countries. The company mainly produces construction machinery, road machinery, mining equipment, garden machinery and other products. All employees of Shandong Guandiao CNC Equipment Co., Ltd. adhere to the principle of credibility is life, quality of survival, customers are the parents of clothing and food, and make new contributions to new and old customers at home and abroad. Welcome friends from all walks of life to visit, guide and negotiate business.
FAQ
Q1. What's the trade term?
Both FOB and CNF/CFR/CIF is OK.
Q2. What's the payment terms?
1) T/T, means international bank transfer. 30% deposit, we produce the machine for you. 70% before shipping.
It is convenient and fast.
2) Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee.
Q3. How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q4. Do you arrange shipment for the machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q5. How about package?
Water-proof film is covered on machine body with foam protection and solid seaworthy wooden box with fumigation without inspection.
