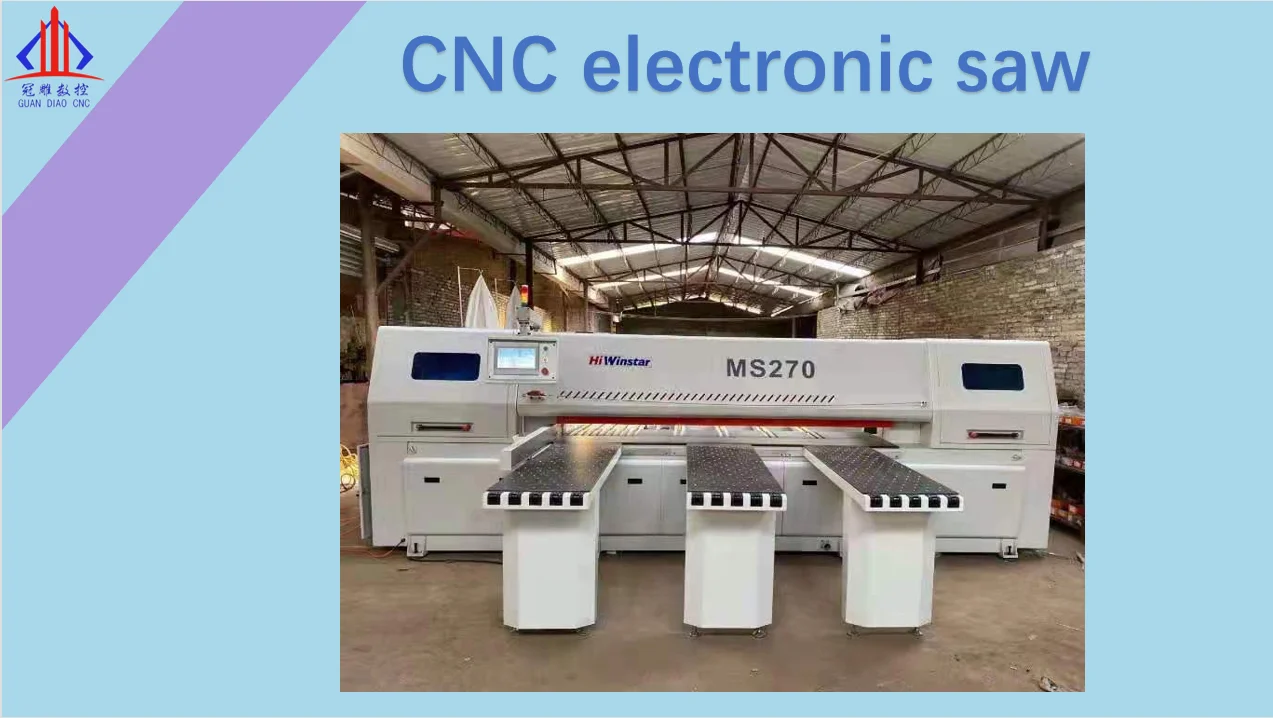

Cnc-router-electronic-cutting-saw-GUANDIAO

Cnc-router-electronic-cutting-saw

We're well-known as one of the leading cnc-router-electronic-cutting-saw manufacturers in China for over 15 years. We warmly welcome you to wholesale high quality cnc-router-electronic-cutting-saw at competitive price from our factory. For more information, contact us now.

Consulta en línea
Descargar

Cancelación

Información del producto

Product Description

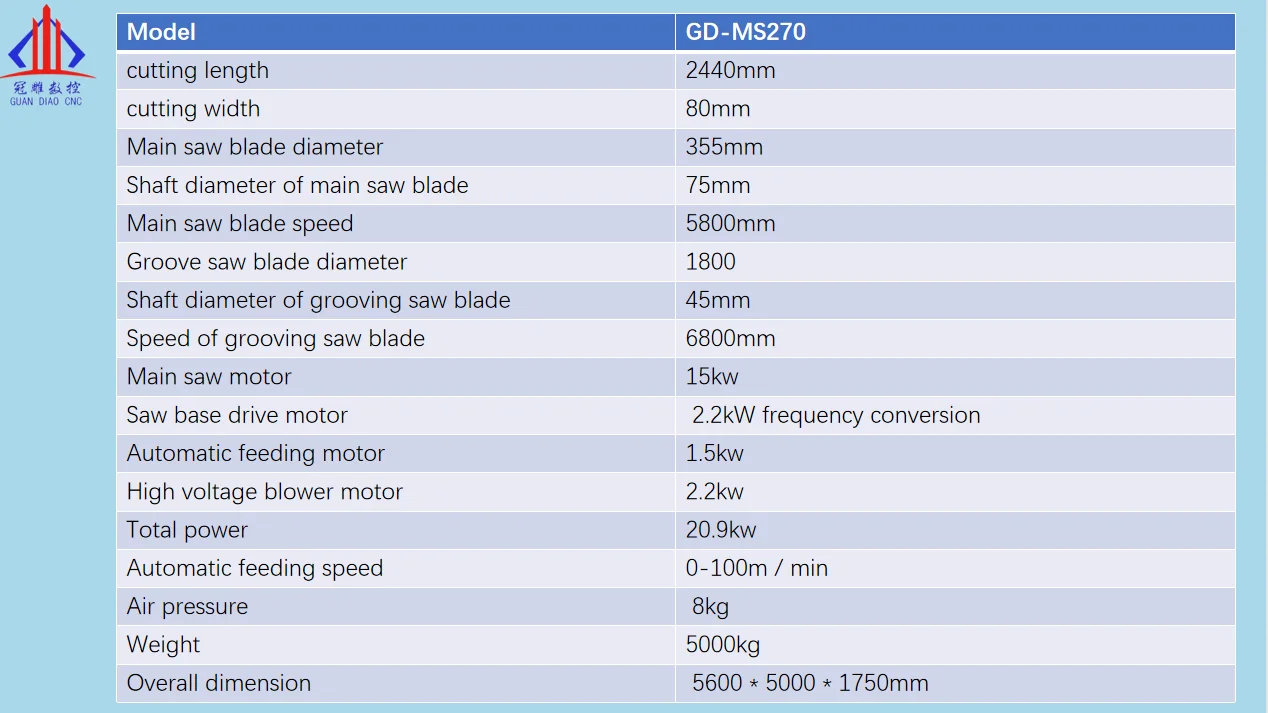

Product Features
cutting length	2440mm
cutting width	80mm
Main saw blade diameter	355mm
Shaft diameter of main saw blade	75mm
Main saw blade speed	5800mm
Groove saw blade diameter	1800
Shaft diameter of grooving saw blade	45mm
Speed of grooving saw blade	6800mm
Main saw motor	15kw
Saw base drive motor	2.2kW frequency conversion
Automatic feeding motor	1.5kw
High voltage blower motor	2.2kw
Total power	20.9kw
Automatic feeding speed	0-100m / min
Air pressure	8kg
Weight	5000kg
Overall dimension	5600 * 5000 * 1750mm

Show details

Air floating bead table

Three worktables of the same size make the plate more uniform and light

Industrial control integrated machine

Simple operation, more convenient and fast

Industrial control integrated machine

Simple operation, more convenient and fast

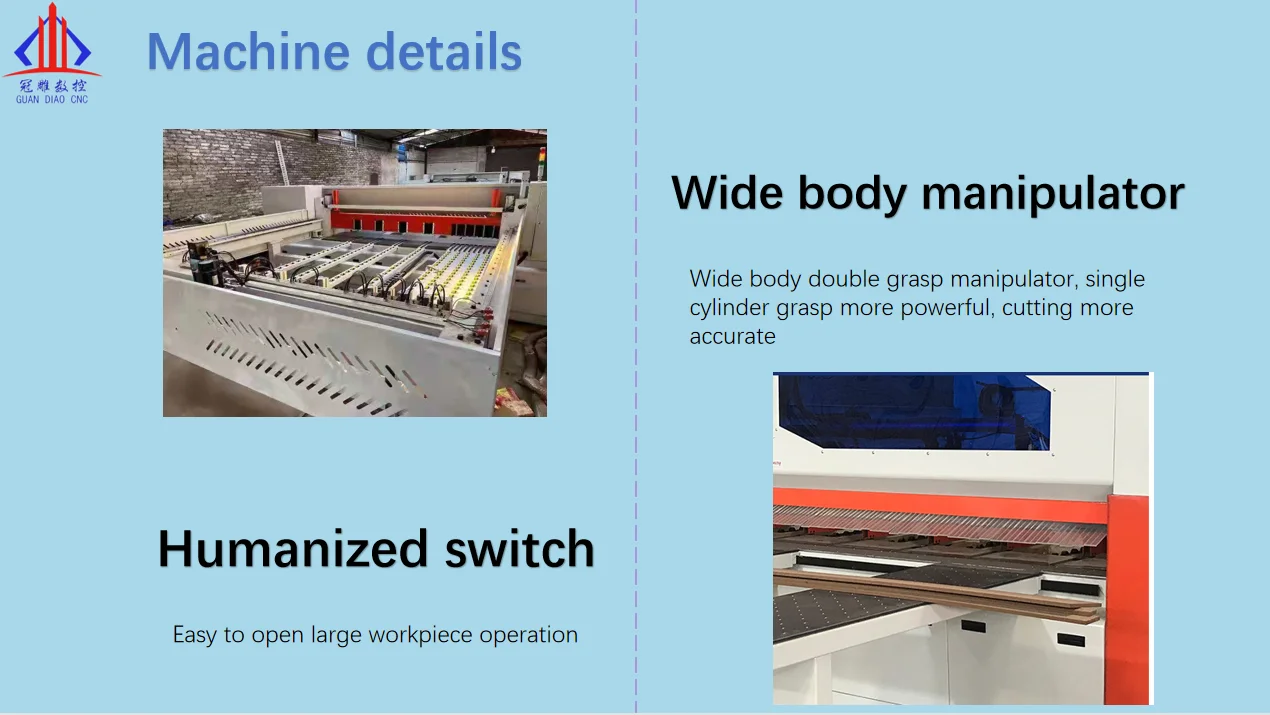

Wide body manipulator

Wide body double grasp manipulator, single cylinder grasp more powerful, cutting more accurate

Working samples

Packing & Delivery

Hot Tags: cnc-router-electronic-cutting-saw, China, suppliers, manufacturers, factory, price, wholesale, for sale, Woodtech Panel Saw, Portable Table Saws, Wood Panel Saw, CNC Table Saw, Panel Saw, CNC Router Table Saw
