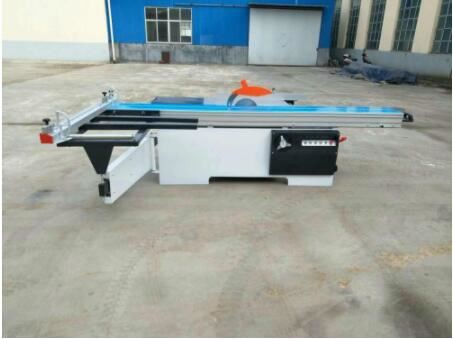

Overview
In 1906, the world's first Sliding Table Saw was born. This technology made sawing wood fast and precise. Since then, it had quickly become popular all over the world. Today, it has gone through more than 100 years. It is mainly composed of a sliding table, a work table, a rung ruler, a slide seat, a main saw, a slot saw and other structures. It is an equipment used for sawing wood of various properties. It has high precision, high efficiency and simple and convenient operation. It is suitable for the processing of large-diameter logs, and the wood cut by it is smooth. There are three types of this product. They have similarities in maximum sawing width, blade diameter, maximum blade thickness, spindle speed, main motor power, diameter of scoring saw, etc. The main differences are in dimensions of sliding table saw, maximum sawing length, angle of saw blade.
Features
1. With sedate portable towing bracket, it operates stably.
2. Its sawing machine has larger using range.
3. It can be used for different plate, such as block board, polymer plates, wood board, fire board, particle board, etc.
4. It owns double layer of slide table.
Product Specification
Product model | 2.8m45° MJ45YD | 2.8m9° MJ45YD | 3m45° MJ45YD |
Dimensions of sliding table saw | 2800*320mm | 2800*320mm | 3000*375mm |
Maximum sawing length | 2750mm | 2750mm | 2950mm |
Maximum sawing width | 1250mm | 1250mm | 1250mm |
Blade Diameter | 300mm | 300mm | 300mm |
Maximum blade thickness | 80mm | 80mm | 80mm |
Spindle speed | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Angle of saw blade | 0-45° | 90° | 45° |
Main motor power | 4.0/5.5kw | 4.0/5.5kw | 4.0/5.5kw |
Diameter of scoring saw | 120mm | 120mm | 120mm |
Speed of scoring saw | 8000rpm | 8000rpm | 8000rpm |
Diameter of countershaft | 20mm | 20mm | 20mm |
Auxiliary motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
Net weight (kg) | 700 | 700 | 770 |
Size (mm) | 2850*3050*900 | 2850*3050*900 | 3050*3100*900 |
Product model | 3m90° MJ45YD | 3.2m45° MJ45YD | 3.2m90° MJ45YD |
Dimensions of sliding table saw | 3000*375mm | 3000*375mm | 3000*375mm |
Maximum sawing length | 2750mm | 3150mm | 3150mm |
Maximum sawing width | 1250mm | 1250mm | 1250mm |
Blade Diameter | 300mm | 300mm | 300mm |
Maximum blade thickness | 80mm | 80mm | 80mm |
Spindle speed | 4500/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Angle of saw blade | 90° | 45° | 90° |
Main motor power | 4.0/5.5kw | 4.0/5.5kw | 4.0/5.5kw |
Diameter of scoring saw | 120mm | 120mm | 120mm |
Speed of scoring saw | 8000rpm | 8000rpm | 8000rpm |
Diameter of countershaft | 20mm | 20mm | 20mm |
Auxiliary motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
Net weight (kg) | 720 | 790 | 770 |
Size (mm) | 3050*3100*900 | 3250*3150*900 | 3250*3150*900 |
Product Details
| One button one switch, convenient and fast. |
| Can adjust 45 degree saw |
| The double -layer round bar guide rail push table has stable structure. |
| The operation is simple and clear to ensure the machining accuracy. |
Product Application
Company Factory Introduction
Packing and Transportation
1. Inside PE film wrapped
2. Outside wooden case packed
3. Operation manual (including electric part operation manual, CNC opeation manual) inside
FAQ
Q1: How to ensure the machine is suitable for us?
We have professional sales support team to inquire about your request, and will send detailed proposal per your requirement . Additionally, you are welcome to come to visit our factory and see machine before order.
Q2: Is engineer available to serve oversea?
Yes, we have the oversea service. But the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
