Product Induction
Woodtech panel saw is mainly used plywood, fiberboard, and dimensional cross-section of particle board straight structure cutting.Combining performance, advanced design, precision and reliability, this panel saw will provide outstanding advantages. Woodtech panel saw has a strong construction and we have selected high quality materials to ensure maximum rigidity and durability. In addition, the company's many years of high-end production technology guarantees the best dimensional accuracy and finish of the machines. The use of this machine is conducive to saving manpower and materials, improving the accuracy and efficiency of processing, thereby greatly improving economic efficiency.
Product Functions and Advantages
(1) Equipped with stable portable traction frame, running smoothly.
(2) The saw blade can be adjusted 45 degrees.

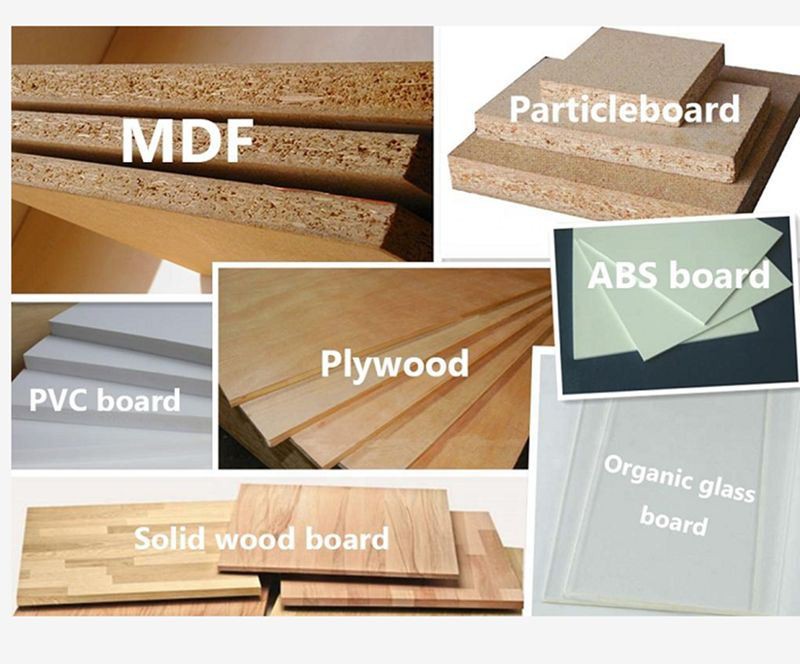

(3) It is suitable for processing various density boards.
Product Specification
Product model | 2.8m45° MJ45YD | 2.8m9° MJ45YD | 3m45° MJ45YD |
Dimensions of sliding table saw | 2800*320mm | 2800*320mm | 3000*375mm |
Maximum sawing length | 2750mm | 2750mm | 2950mm |
Maximum sawing width | 1250mm | 1250mm | 1250mm |
Blade Diameter | 300mm | 300mm | 300mm |
Maximum blade thickness | 80mm | 80mm | 80mm |
Spindle speed | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle diameter | 30mm | 30mm | 30mm |
Angle of saw blade | 0-45° | 90° | 45° |
Main motor power | 4.0/5.5kw | 4.0/5.5kw | 4.0/5.5kw |
Diameter of scoring saw | 120mm | 120mm | 120mm |
Speed of scoring saw | 8000rpm | 8000rpm | 8000rpm |
Diameter of countershaft | 20mm | 20mm | 20mm |
Auxiliary motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
Net weight（kg) | 700 | 700 | 770 |
Size (mm) | 2850*3050*900 | 2850*3050*900 | 3050*3100*900 |
Product Details
| Adjustment button |

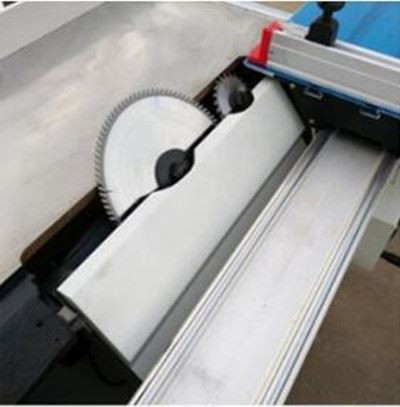

| 45 degree saw |
| Round guide rail |
Product Application
Company Introduction
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after-sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products are widely used in furniture, advertising, stone, architectural decoration, handicrafts, mold manufacturing, stair column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, clocks, accessories, seals and other industries.
Packing and Transportation
Our Service
1. 12 months guarantee of the whole machine some model machine warranty 2 years.
2. Main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. Our staff can be sent to your company to install or adjust if necessary.
5. Technical support online whole life.
FAQ
1.How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
2.How can I get the sample to check you quality ?
If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
3.Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
4.Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
