Cnc Wood Polish Sanding Machine-GUANDIAO

Información del producto

Product Description

1.The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and
durability
2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient
maintenance.
3. The belt tensioning cylinder is made of cast iron, which has large tension and good stability.
4. Conveyor belt adjustment cylinders are all 63*20 cylinders, with high strength and good stability.

Model	GD-630	GD-1000	GD-1300
Working width	30-630mm	30-1000mm	30-1300mm
Size of Abrasive Belt	650*1900mm	1020*2000mm	1320*2200mm
Working thickness	2-100mm
Feeding speed	5-25m/min
Inverter	5.5KW+1.5kw
Reducer motor	1.5kw
Total power	11kw
Air pressure	>0.55Mpa
net weight	1600kg
Voltage	220V/380v

Detailed Images

Roller

Special custom weight roller seat, more stable and strong, pull-down spring design to extend the service life of the spring.

Disc

Disc vertical stagged grinding and reciprocating swing,refuse to miss,equipped with fast adapter, more convenient and fast to use

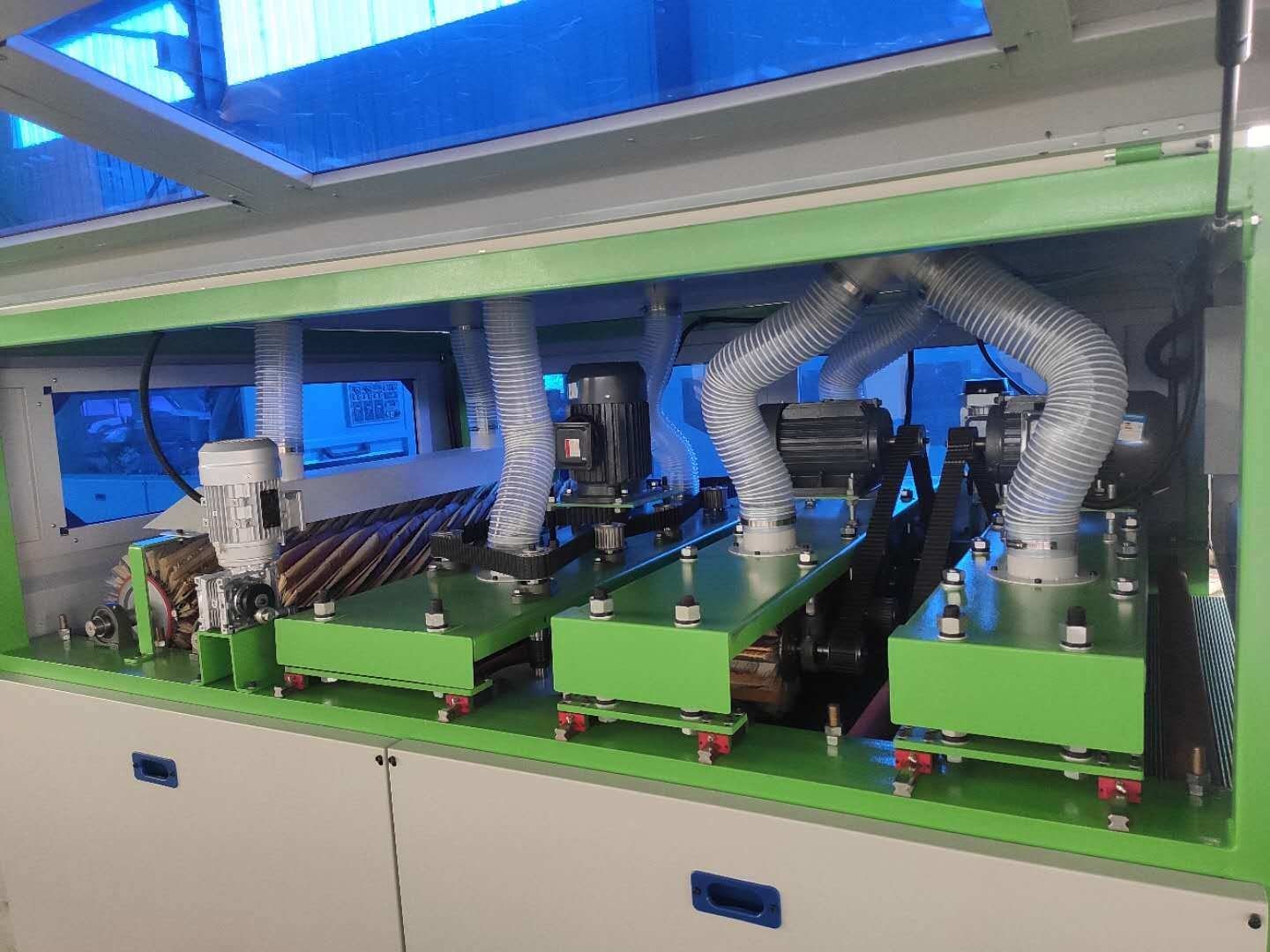

Internal structure

Before

After

Sample products

Certificate

Certificate Introduction

Company Introduction

Shandong chuang diao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service.

Packing&Shipping
