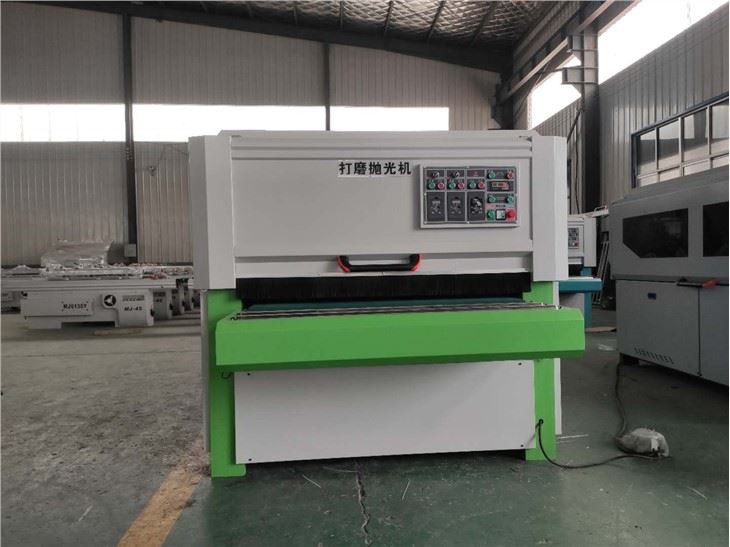

Wood polishing machine sander
Advantage:
1. Floating type, can be used as a linkage machine;
2. PLC screen adjustment;
3. There are eight memory functions to save working time and increase working capacity;
4. The straight roller swings from side to side, without four corners during polishing;
5. One-key switch between up and down calibration;
6. Double-sided sandpaper, sandpaper of different thickness, can be used as two machines, saving cost.
Specification
Model | GD-630 | GD-1000 | GD-1300 | |
Working width | 30-630mm | 30-1000mm | 30-1300mm | |
Size of Abrasive Belt | 650*1900mm | 1020*2000mm | 1320*2200mm | |
Working thickness | 2-100mm | |||
Feeding speed | 5-25m/min | |||
Inverter | 5.5KW+1.5kw | |||
Reducer motor | 1.5kw | |||
Total power | 11kw | |||
Air pressure | >0.55Mpa | |||
net weight | 1600kg | |||
Voltage | 220V,3P.60hz | |||
Details
Control panel The panel design is clear, the operation is more convenient, the labor time is saved, and the efficiency is higher. |
Conveyor belt motor Cast iron gearbox motor, even in the case of high temperature does not affect the work, large speed ratio, conveying speed can be adjusted at will. |
Genuine inverter The whole machine is made of genuine well-known electrical appliances, with super stable performance and anti-interference ability. The warranty is three months for other manufacturers, and one year for us. |
Lifting support column The use of high-power electric lifting table, save time, labor, labor, processing plate thickness up to 12 cm, far more than the market. |
Conveyor table Five layer superimposed material conveyor belt, long-term use will not appear deviation, channel iron plate worktable, equipped with pneumatic deviation device, heavier body, prevent shaking, long service life. |
Vertical grinding plate Used for vertical grinding, suitable for groove, carving, lattice and other grinding. |
Cross roll It is also called straight roller, which is used for plane grinding of plate. For softer wood, it uses 2-4 rollers, and for harder wood, it uses 2-4 rollers. |
Application
Packing&Shipping
Company Profile
Our products are mainly included Precise panel saw, Edge Banding Machine, Multiple Drilling Machine, Press machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. We have established complete sales system. Our company takes the principle of quality first and customer foremost, and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Our Services
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer’s account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1）. Technical support by phone, email or WhatsApp/Skype around the clock.
2）. Friendly English version manual and operation video.
3）. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines has been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia, Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German.
