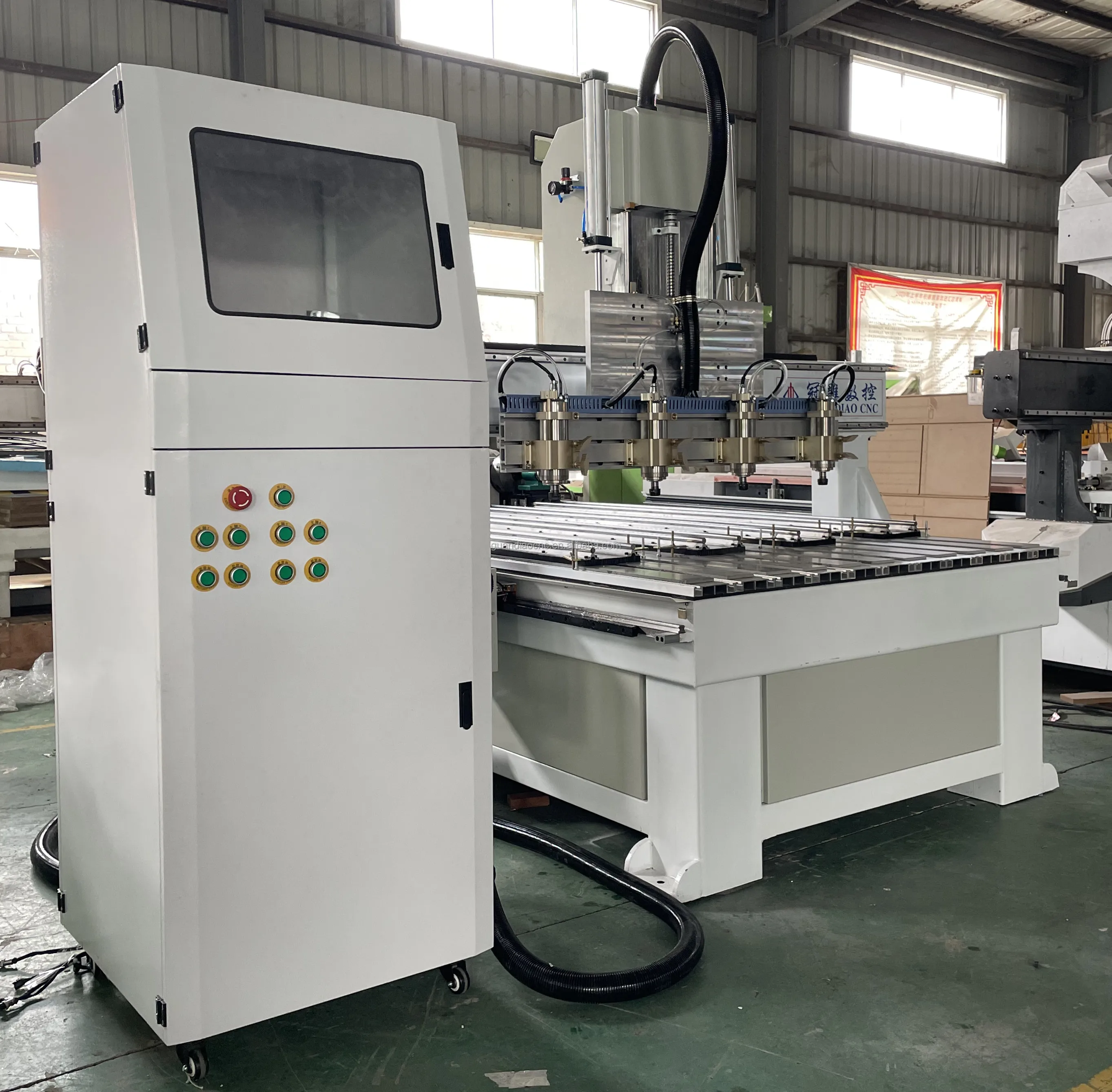

Model | 1325-4CNC Router |
Table Size | 1300*2500mm |
Feeding Height(Z Axis) | 200mm |
Table | Aluminum table（Aluminum +PVC） |
Spindle Power | 3kw water-cool spindle*4 |
Frequency Converter | 3.5kw |
Rotary device length | 1.5m |
Rotary device diameter | 200mm |
Collet Type | ER20 |
Spindle Speed | 0-24000rpm |
Maximum Idle Speed | 30000mm/min |
Transmission | High precision rack,Z axis ball screw |
Driving Mode | Stepper motor |
Driver | Leadshine 860 high-speed drive |
Working Speed | 0-15m/min |
Tools | collet, nut lock,wrench. |
Control System | March 3 Control System |
Tool sensor | Included |
Function | Engraving,cutting,chamfering,drilling... |
Application | Wood materials,Acrylic,PVC,Plastic,Soft metal and other materials |

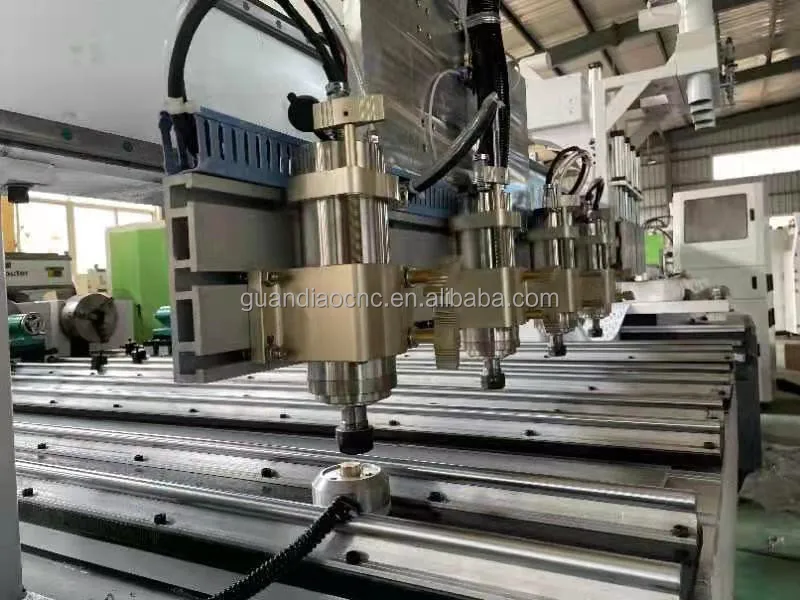

Machine equip with 3/4/5/6/8/10 pics spindles according to user's productions.multi heads ,high efficiency and each spindle with adjustable holder for same level adjusting when process material, easy for position, ensuring working precision,saving calibration
time.
Y axis adopts two way Taiwan Hiwin square guide rail and germany brand helical rack transmission, stable running,longer using life.
Automatic oil lubrication for guide rail and rack after setting time .save labor.easy for maintenance for machine
Square guide rail with 20/25mm. stable running, strong bearing, won't deformed after long time working Helical rack with 1.25M. bigger working strength ,
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold, stamping mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry:seal engraving of various types of materials.
Automotive industry:tire molds, lamp molds and decorative mold processing.
FAQ
-Q What is the payment terms?
A:Western Union,Cash,T/T
-Q How long is the delivery date?(After getting the deposit)
A:Delivery time is 5-7 working days for standard machine models,please confirm with us before payment.
-Q How about the shipping
ways?
A:By sea or by air
-Q Is on site training is available ?
A: Yes, we could provide training in our factory or at your workshop after machine arrival.
-Q Where is your factory located? How can I visit there?
A:Jinan City, Shandong Province, China,
